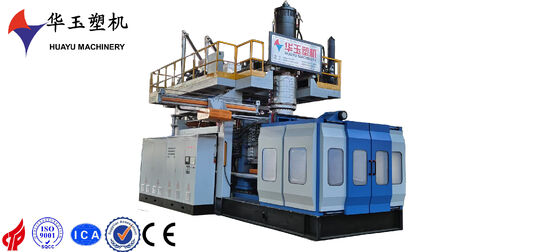

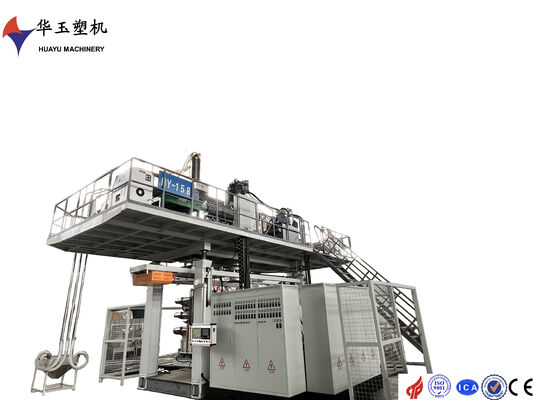

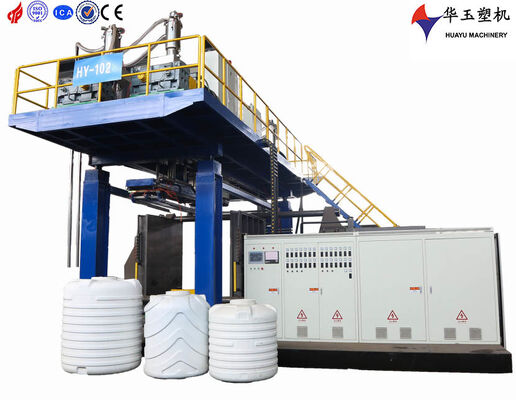

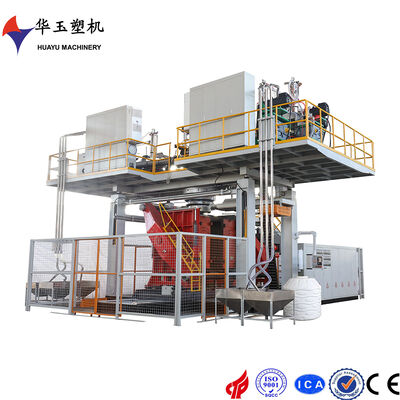

3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System

  • 3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
  • 3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
  • 3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
  • 3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System
Lugar de origem China
Marca Huayu
Certificação CE,ISO9001
Número do modelo HYBM-3008
Quantidade de ordem mínima 1 conjunto
Preço Negotiate
Detalhes da embalagem Por contêineres
Tempo de entrega 4 meses
Termos de pagamento L/C,T/T
Habilidade da fonte 4 séries por mês
Detalhes do produto
Material da tremonha Aço inoxidável Camada 8 camadas
Automático Sim Material do molde Alumínio
Capacidade 3000L Método de aquecimento Aquecimento Elétrico
Consumo de água de resfriamento 0.3Mpa*20°*30° por hora Espessura da cubeta não muito espessa
Garantia 1 ano Modo de resfriamento Refrigerado a Ar
Destacar

3000L IBC blow molding machine

,

8-layer co-extrusion IBC tank machine

,

rapid cooling IBC molding machine
Deixe um recado
Descrição de produto
3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine
This high-capacity blow molding machine features 8-layer co-extrusion technology and a 3000L capacity, engineered for rapid production cycles. The integrated water tank cooling system ensures efficient heat dissipation, significantly reducing cycle times while maintaining consistent product quality. Advanced control systems provide precise molding process management, while the robust construction delivers long-term reliability with minimal maintenance requirements.
Blowing and Cooling System Specifications
Stretching StrokeCustomizable according to product requirements
Blow Pin Up/Down Stroke600mm
Air Seat Stroke400mm
Maximum Air Pressure0.8 MPa
Air Consumption3 m³/min
Cooling MethodCirculating Water System
Water Pressure0.3 MPa
Cooling Water Consumption75 m³/h
Hydraulic System Specifications
Main Oil Tank Capacity1700L
Main Oil PumpGear Pump 200CC
Main Oil Pump Motor75 kW
Servo Oil Tank Capacity200L
Servo Oil Pump ModelPlunger Pump 22
Servo Oil Pump Motor11 kW
Features: Servo motor technology for reduced energy consumption, high efficiency operation, and low noise levels
3000L Capacity 8-Layer Co-Extrusion IBC Blow Moulding Machine with Rapid Cooling System 0
