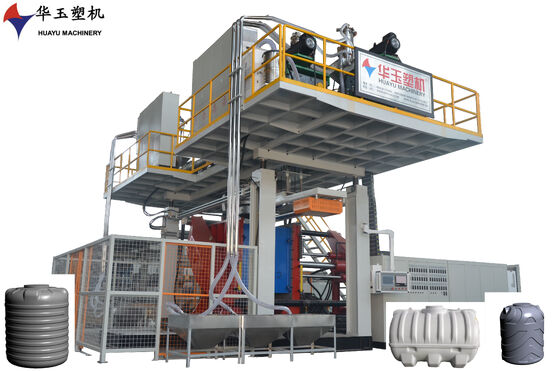

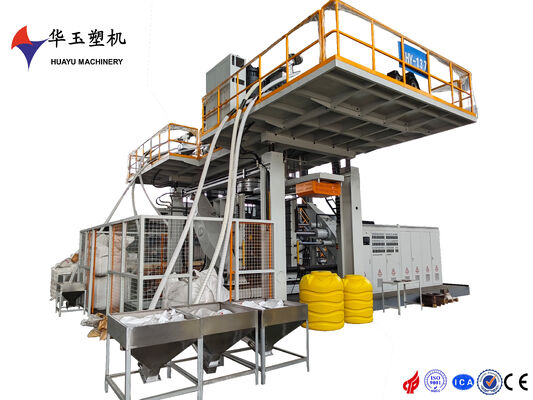

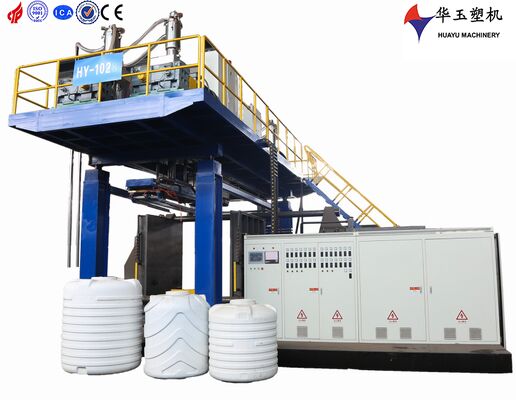

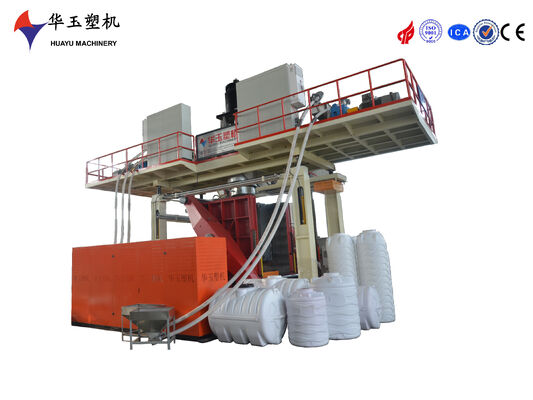

1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
| Lugar de origem | China |
|---|---|
| Marca | HUAYU |
| Certificação | ISO9001 CE |
| Número do modelo | HYBM-1500L,3 camadas |
| Quantidade de ordem mínima | 1 conjunto |
| Preço | 200000 USD |
| Detalhes da embalagem | ser desmontado em várias partes para transporte em contentor |
| Tempo de entrega | 4 meses |
| Termos de pagamento | T/T,L/C |
| Habilidade da fonte | 1 conjunto de 120 dias |
Contacte-me para amostras e cupons grátis.
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.
xDetalhes do produto
| Tensão | pendente | Potência total | 435 kW |
|---|---|---|---|
| Energia média | 8.5*6*7.2 | Produtividade | 10-24pcs/h |
| Diâmetro do parafuso | 110/120/110mm | Relação L/D do parafuso | 28: 1 |
| Capacidade do acumulador | 60kg | Max. Tamanho do molde | 1600*2000mm ((W*H) |
| Pressão máxima do ar | 0,8Mpa | Consumo de ar | 1.5 m3/min |
| Destacar | 1500L Water Tank Blow Moulding Machine,Triple-Layer Blow Molding Equipment,High Efficiency Plastic Drum Blow Molding Machine |
||
Descrição de produto
Cutting-Edge 3-Layer 1500L Water Bucket Blow Molding Equipment
Introducing our 1500L Triple-Layer Blow Molding Machine: a high-performance solution designed for the production of large, heavy-duty plastic drums and tanks. This machine is built to deliver exceptional quality, operational efficiency, and a rapid return on investment for your business.
Key Advantages
- Triple-Layer Technology: Produce drums with an inner layer for chemical resistance, a middle layer for cost-saving recycled material, and an outer layer for UV protection and durability. This versatility ensures a superior product at a competitive cost.
- High Efficiency & Output: Features a powerful extrusion system and a large accumulator head for stable, high-volume production. The advanced hydraulic clamping unit ensures consistent wall thickness and a fast cycle time, maximizing your daily output.
- User-Friendly & Reliable: Equipped with a state-of-the-art PLC control system with a large touchscreen, making operation and parameter setting simple and intuitive. Its heavy-duty steel frame and precision components guarantee long-term stability and low maintenance.
- Energy & Cost Savings: Incorporates energy-saving motors and optimized heating systems to significantly reduce operational costs. The ability to use recycled material in the middle layer further lowers your raw material expenses.
Applications
Ideal for manufacturing 1500L (and similar large-capacity) plastic drums and tanks for a wide range of industries, including chemicals, pharmaceuticals, food processing, and water treatment.
Choose our 1500L Triple-Layer Blow Molding Machine for a reliable, efficient, and profitable production solution.
Technical Specifications
Hydraulic System
| Specification | Value | Features |
|---|---|---|
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 160CC | |
| Main Oil Pump Motor | 57kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System
| Component | Specification |
|---|---|
| Main Operation Panel | Touch Screen 9" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
