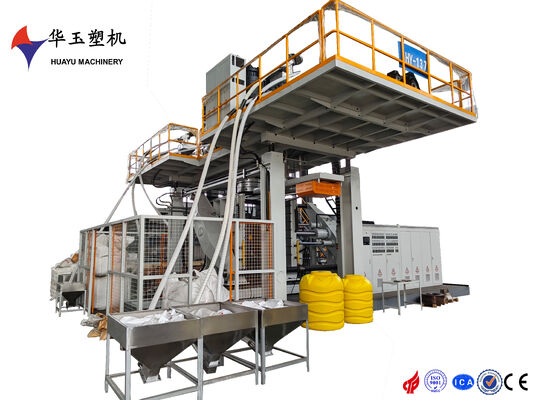

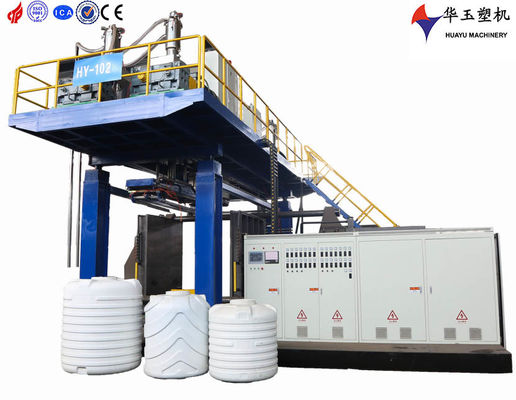

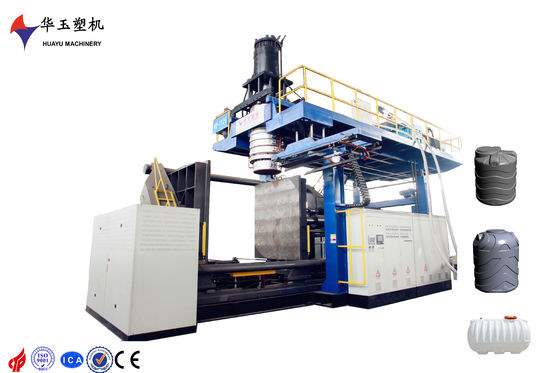

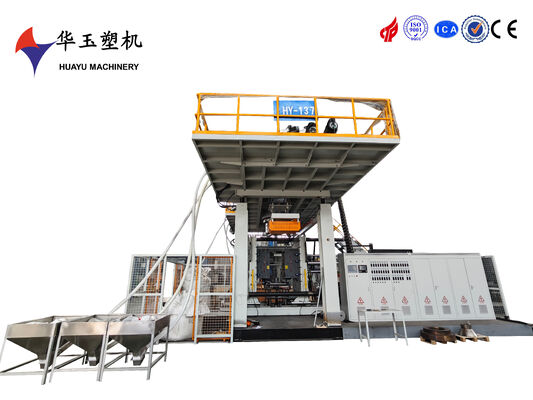

2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production

  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
Lugar de origem China
Marca HUAYU
Certificação ISO9001 CE
Número do modelo HYBM-8.2200L -6 camadas
Quantidade de ordem mínima 1 conjunto
Preço 280000 USD
Detalhes da embalagem ser desmontado em várias partes para transporte em contentor
Tempo de entrega 4 meses
Termos de pagamento L/C,T/T
Habilidade da fonte 1 conjunto de 120 dias

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Tensão pendente Potência total 550kW
Energia média 320kW Dimensão da máquina (L*W*H) 8,5*9,5*7
Produtividade 10-24pcs/h Diâmetro do parafuso 90 mm
Relação L/D do parafuso 28 Capacidade do acumulador 60kg
Max. Tamanho do molde 1600*2000mm ((W*H) Pressão máxima do ar 0,8Mpa
Consumo de ar 2.3m3/min
Destacar

6-layer structure Water Bucket Blow Molding System

,

2200L capacity Water Tank Blow Moulding Machine

,

High-speed continuous production Blow Molding Machine
Deixe um recado
Descrição de produto
Efficiency Redefined: 6-Layer 2200L Water Bucket Blow Molding System
Key Advantages
  • 6-layer structure for superior durability and impact resistance
  • Strong barrier performance against moisture and contaminants
  • High-speed continuous production for large-scale orders
  • Layered material allocation reduces production costs
  • Flexible customization for 2200L bucket specifications
Hydraulic System Specifications
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 55kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic Control System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production 0
