5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System

  • 5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System
  • 5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System
  • 5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System
  • 5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System
  • 5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System
Lugar de origem CHINA
Marca HUAYU
Certificação ISO9001 CE
Número do modelo HYBM5000-10
Quantidade de ordem mínima 1 conjunto
Preço 620000 USD
Detalhes da embalagem ser desmontado em várias partes para transporte em contentor
Tempo de entrega 4 meses
Termos de pagamento L/c, t/t
Habilidade da fonte 1 SET 120 dias

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se tiver alguma preocupação, fornecemos ajuda online 24 horas por dia.

x
Detalhes do produto
Interruptor do ar Schneider Motor 5.5
Distância entre as placas 1400-3800mm Capacidade de Plastificação 600kg/h
Grau de automação Automático Tela de toque Siemens
Plc Siemens Contator Schneider
Diâmetro do parafuso 150 mmx1 Capacidade do acumulador 80 kg
Sistema de resfriamento Resfriamento de água Vedação de Óleo Hidráulico DZ
Tensão 220-440v Atributo Customize desenhos
Pressão da água 0,3MPA
Destacar

5000L Capacity Water Tank Blow Molding Machine

,

10-Layer Co-Extrusion Blow Molding Machine

,

Large-Scale Production Plastic Water Tank Machine
Você pode marcar os produtos de que precisa e se comunicar conosco no quadro de mensagens.
Deixe um recado
Descrição de produto

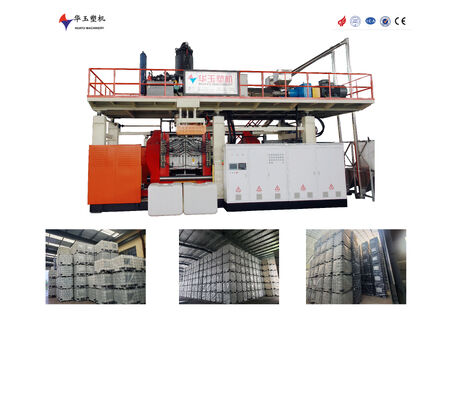

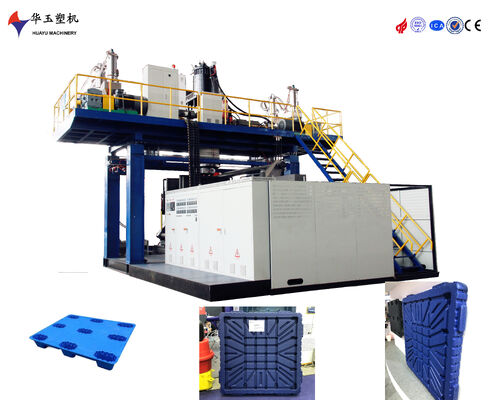

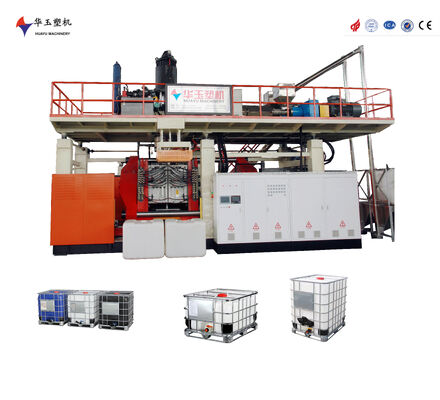

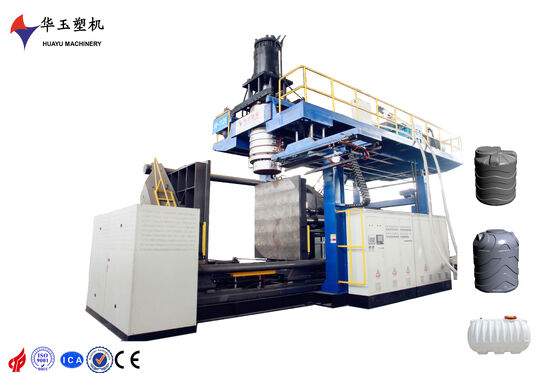

5000L 10-Layer Large High-Efficiency Water Tank Blow Molding Machine with Efficient Cooling System
This advanced 5000L capacity blow molding machine with 10-layer co-extrusion is engineered for large-scale production of high-quality plastic containers. Featuring an integrated water tank system for efficient cooling and heat dissipation, it maintains optimal operating temperatures while enhancing production efficiency. The state-of-the-art control system provides precise temperature and pressure regulation for consistent product quality. With robust construction and high-speed production capabilities, this machine is ideal for industries requiring large-volume, high-quality plastic products. The water tank is designed for easy maintenance and long-term reliability, offering a cost-effective solution for your production needs.
Technical Specifications
Specification Details
Applicable Material HDPE
Manufacturer China*HUAYU
Capacity Range 1000-5000L, 3layers
Voltage Pending
Total Power 690kw
Average Power 420kw
Machine Dimensions (L*W*H) 10*8*8.8
Productivity 4-18pcs/h
Auto Feeder Specifications
  • Hopper Material: Stainless steel - Stable performance, easy maintenance
  • Feeding Type: Vacuum loaded
  • Feeding Motor: 2.2/2.2/2.2kw
5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System 0
